Modify Tag and Attribute Values

Permissions

Users with the SCADA ADMINISTRATOR role or SCADA OPERATOR role for the site can modify tag and attribute values.

Select the Set option for a tag or attribute on the Site Summary screen to set the tag value.

  1. Set the value
  2. Tap SEND.

Tag Details screen

For a tag value, after selecting SEND, wait until the value changes to confirm that the value has been correctly written to the site.

If you are setting a flow or position value, you can use the Flow and Position Calculator to calculate what gate position is required for a given flow, or what flow will result for a given gate position. Tap the Flow Calculator button to open the tool.

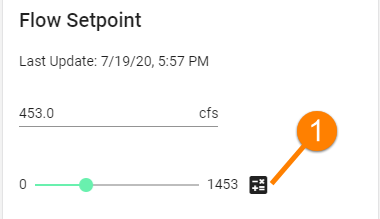

Flow Setpoint tag details with a Flow Calculator button (1)
