Site Map

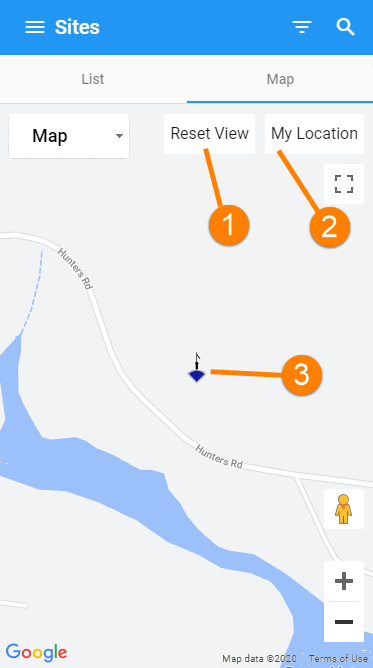

You can view the location of sites on a map in both the desktop and mobile versions. On a larger screen, the map is displayed on the same screen as the Site List. On a smaller screen, you can use the tabs to switch from the Site List to the Map view.

The map screen uses Google Maps and you can use any of the standard Google Maps tools to manipulate the map. You can also use these SiteConnect tools:

1. Reset the map so that it shows all the sites currently in the list by tapping Reset
2. Centre the map on your current location by tapping My Location. Centre the map on any specific site by using the SiteConnect search tool to find the site.
3. Open the Site Details screen by selecting a site on the map.
