Presets

Presets are control mode and setpoint changes that are programmed in advance to be set at a specific time. You can view and manage presents on the Site Details > Presets tab.

You can set presets manually, or they may be written automatically to meet order requirements if the gate is using automatic control.

  1. Preset details. Select the preset to edit these details
  2. Enable/disable this preset
  3. Disable all presets at the site
  4. Send any preset changes you have made to the site

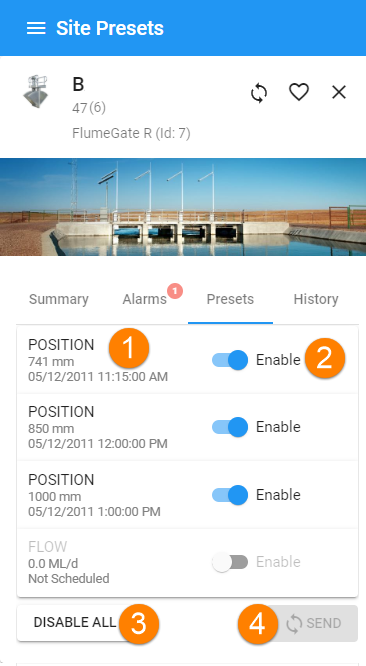

Site Presets screen

Enable or Disable Presets

Toggle the Enable switch to enable or disabled any configured presets. Or click the DISABLE ALL button to disable all the presets.

Add, Change or Remove a Preset

Select an individual preset to make changes to the preset. When you have finished making changes, click the SEND button at the bottom of the screen to send your changes to the site.

  1. Preset details
  2. Enable/disable switch
  3. Edit preset details
  4. Save your edits and close this editor (you must also click the SEND button to send the preset changes to the site)

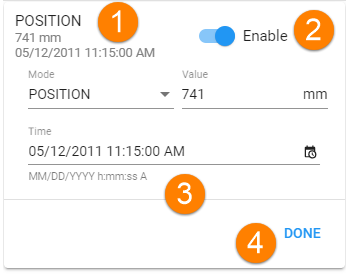

Edit screen for a selected preset
