Show Abutments Tool

The Show Abutments tool displays a list of nodes and network objects that are connected to the selected node. Use the tool as a troubleshooting technique for confirming that network nodes are correctly connected.

Use the Select by Regulator tool to view connections for larger sections of the network.

To show the connections for a network node:

1. In the Network Editor, click Show Abutments to open the Show Abutment popup window.
2. Click on the node that you want to check. The nodes and objects connected to the selected node are listed in the Show Abutment window.

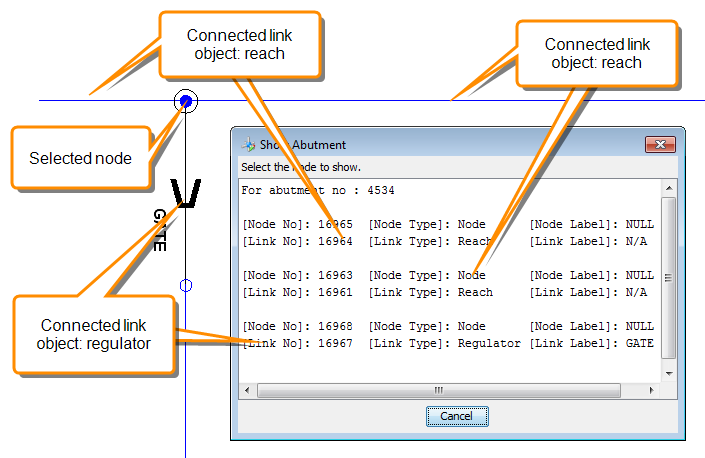

Showing the abutments for a node with three connected objects

Note:	If the network editor is unresponsive after using the Show Abutments tool, check to make sure that you have deselected the tool when you have finished using it.
