System Plan Supply Capacity Module

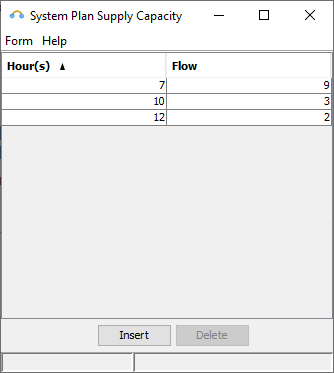

The System Plan Supply Capacity module is where you can manage predicted flow data for the system. This is used as the default supply capacity table. This tool is used in conjunction with planning to compare the supply capacity with the planned demand.

See Supply Matching Tool for more details of how this is used.

What is the supply capacity?

The supply capacity is the predicted flow at the top regulator for the planning area at specified times relative to the beginning of a plan day.

Note

This is configured using the TOP REGULATOR relation on the Relations tab of the planning area.

In the Trend tool, you can overlay the supply capacity on the flow histogram to confirm that your planned deliveries are a good match to the expected supply.
